KM 6520 FR - Electric cooktop with onset controls


KM 6520 FR

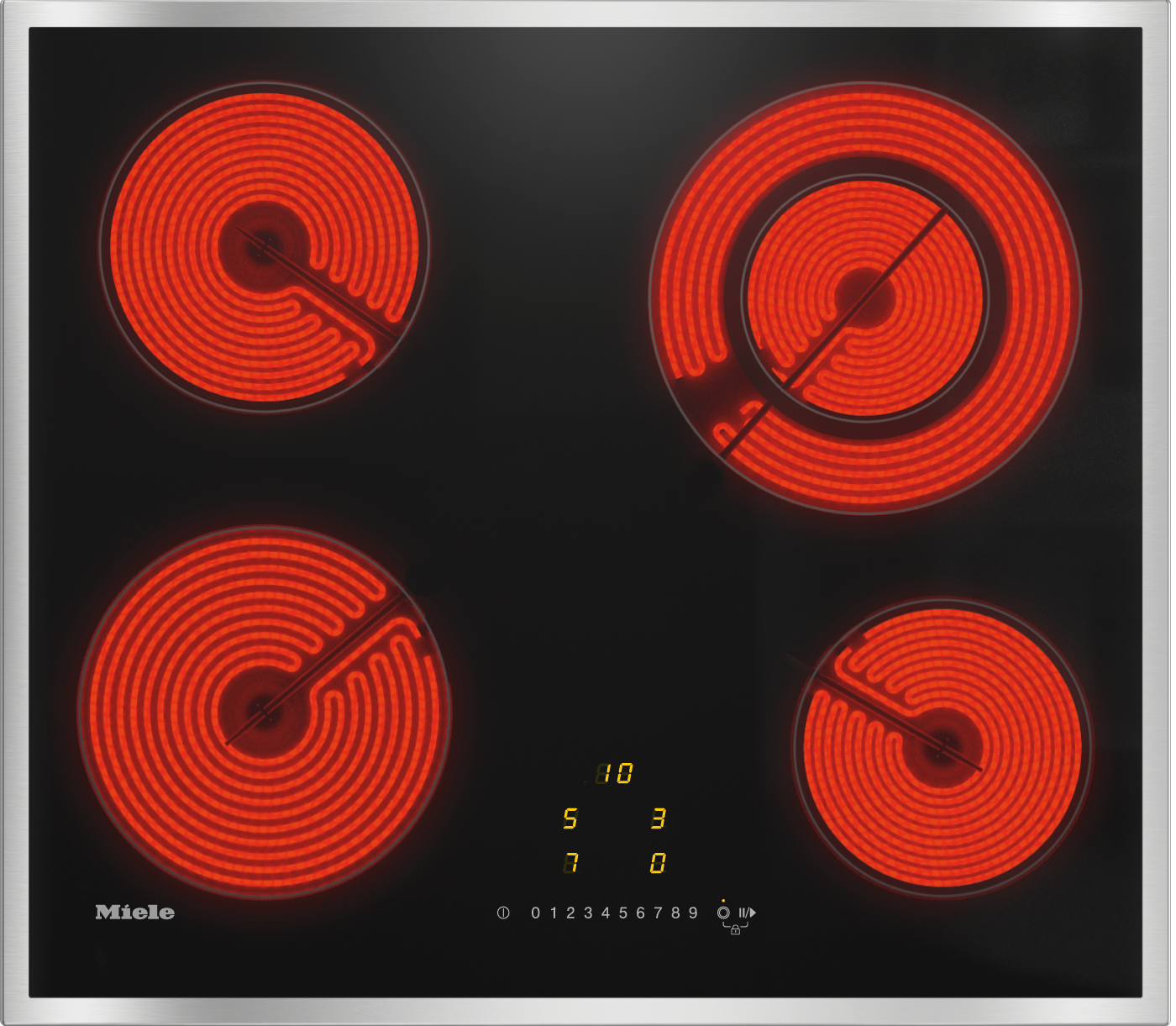

Electric cooktop with onset controls with 4 cooking zones for maximum convenience.

Price: $ 1,749.00
KM6520 FR

More product information

Electric cooktop with onset controls with 4 cooking zones for maximum convenience.

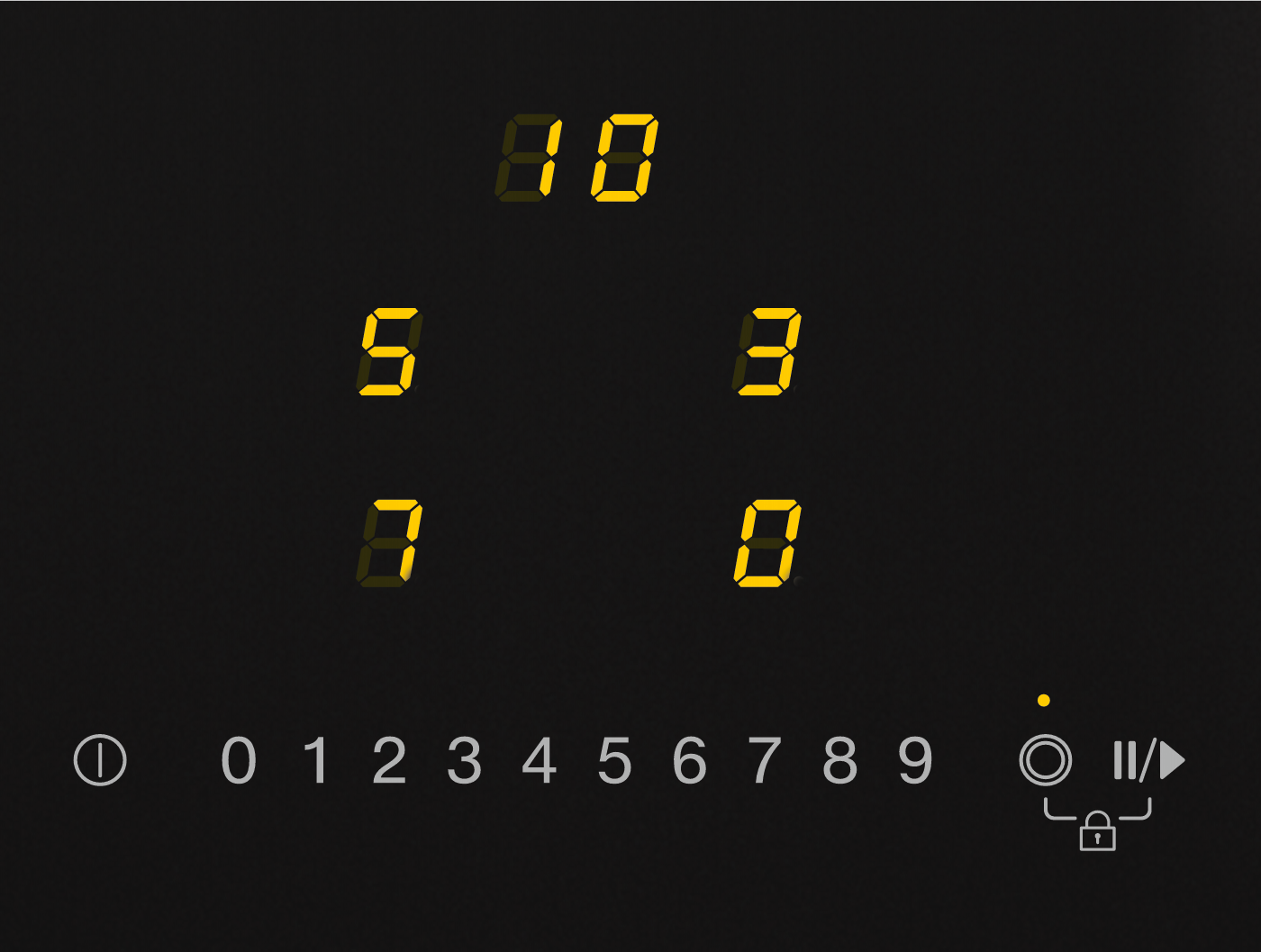

  • Easy operation – EasySelect

    EasySelect

    Concentrate on the important things: a central numerical keybank to control all cooking zones and power levels.
  • Attractive design – 574 mm wide with all-round frame
  • Particularly versatile – 4 cooking zones incl. 1 Vario zone
  • Convenient – Auto heat-up for every cooking zone

    Auto heat-up

    Always at the right time: This function reduces the initial power boost to prevent burning.
  • Safe – three level residual heat indicator for every cooking zone

Downloads - KM 6520 FR

User manual & Assembly

Description Format Download
Operating instructions accessoriespdf Download
Guarantee bookletpdf Download

CAD data / BIM data

Description Format Download
3D data DWGzip Download
3D data FBXzip Download
3D data RFAzip Download
3D data RVTzip Download
3D data IFCzip Download

Installation drawings

Installation drawings

Whether you want to replace a household appliance or planning a kitchen - here you will find all the relevant installation diagrams for your Miele appliance.

If you want to download an installation diagram, please click on the appropriate image and the high-resolution version is displayed. To download, click the right mouse button and save the image on your computer.

Please note that the installation and maintenance of our equipment should only be performed by a licensed contractor. For questions, please call us and we will advise you without any obligation!

Descriptions

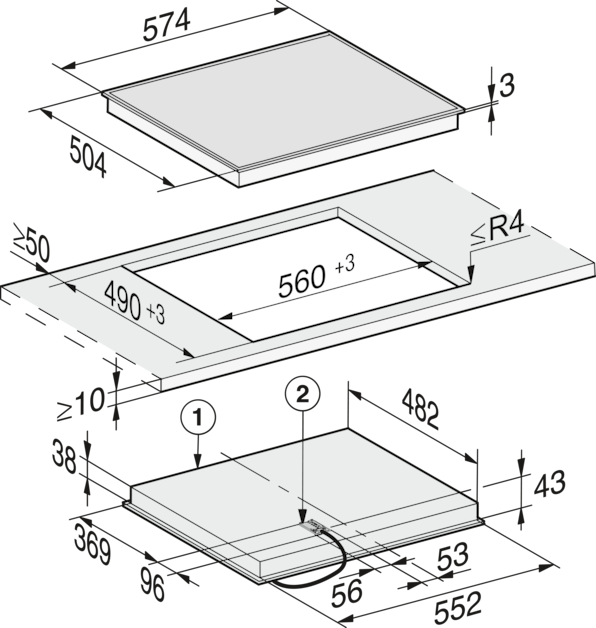

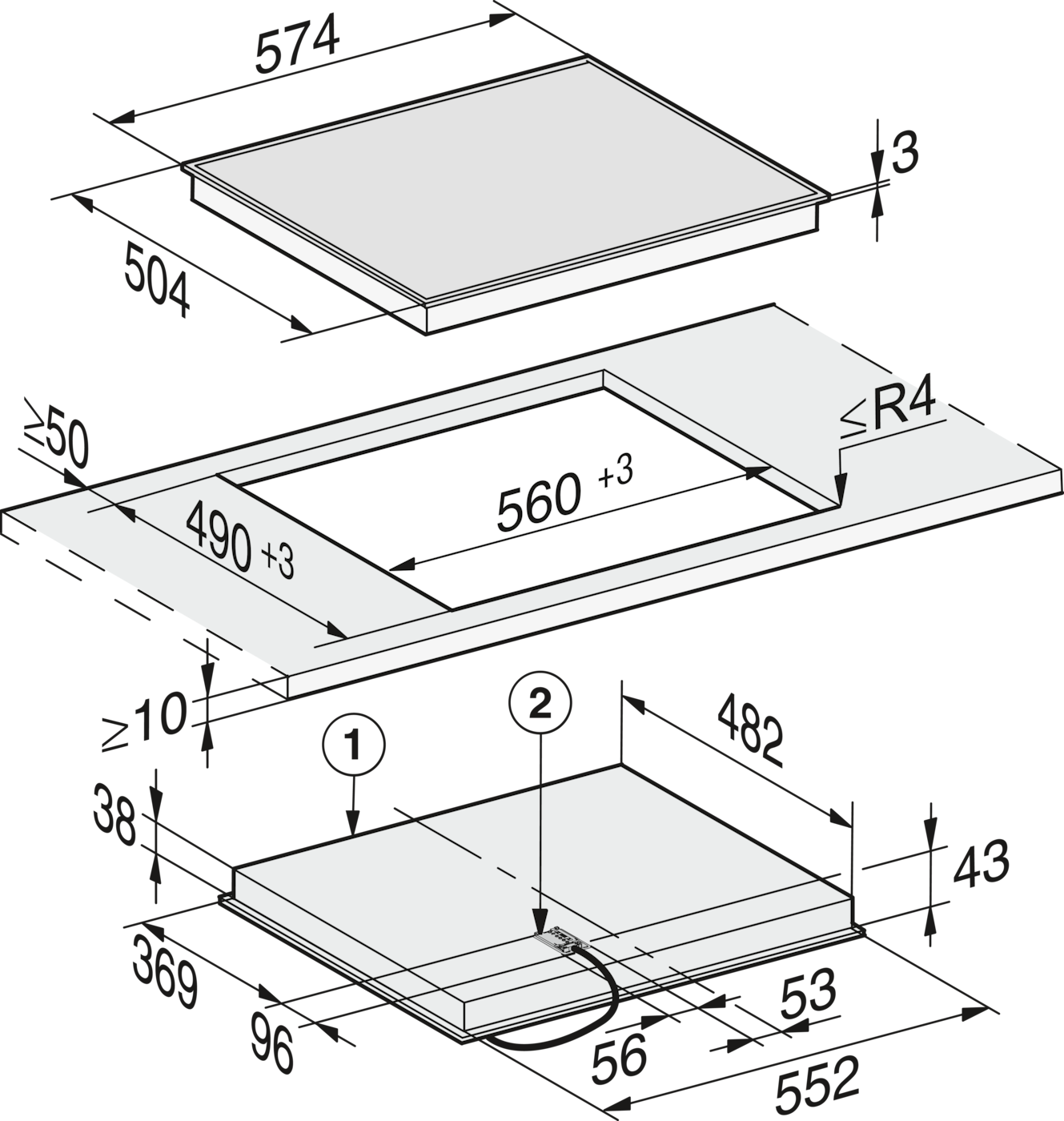

KM 6520 FR, KM 6538 FR (Installation drawign)

1) Front, 2) Mains Connection box. Built-in height 43 mm, mains connection cable L = 1440 mm

Images serve as examples to illustrate the product benefit. Actual feature may vary per model.
