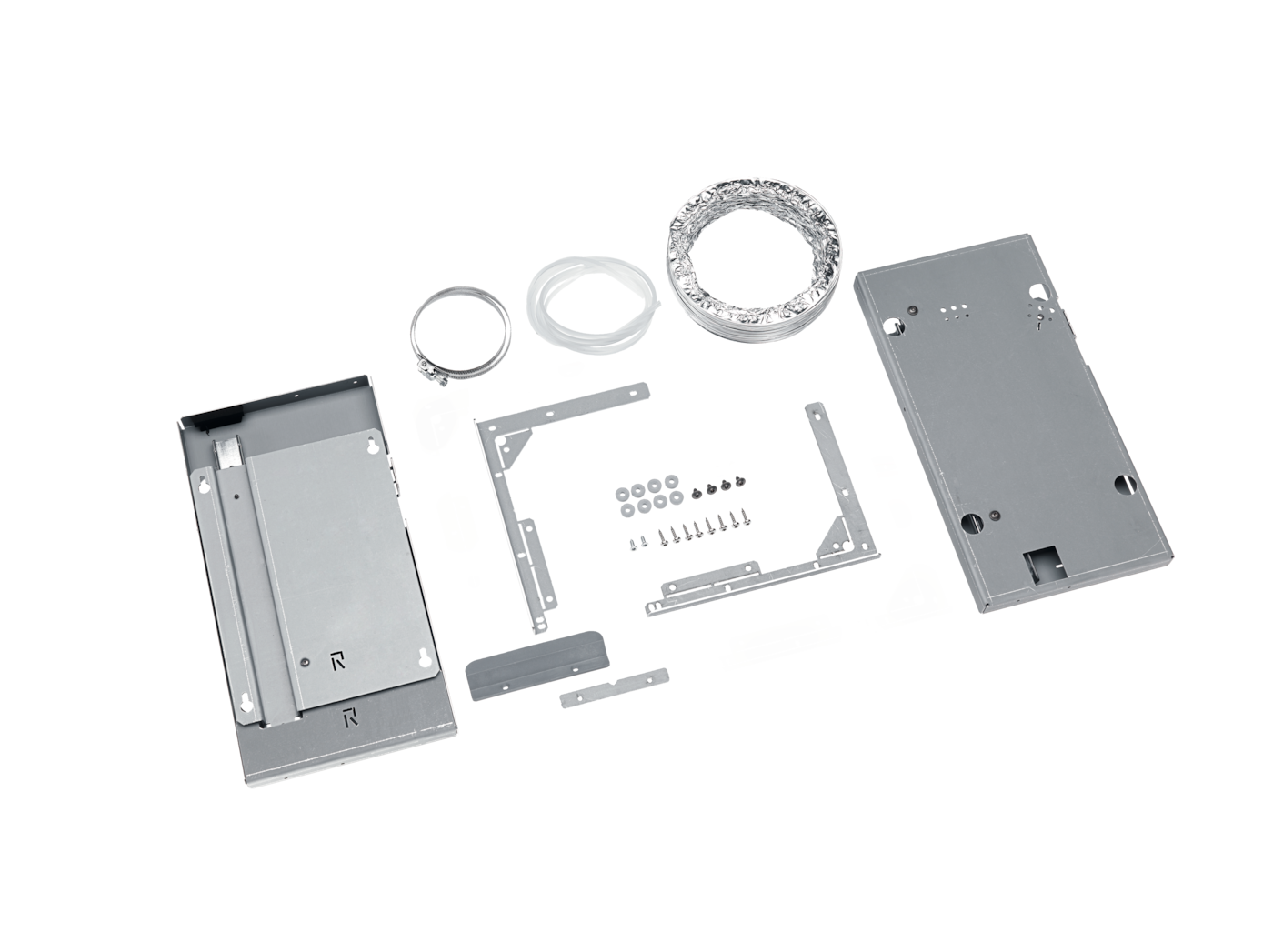

DAR 3000 - Drop-down frame


DAR 3000
Drop-down frame for full integration of DA 336x/brDA 34xx.

Price: $ 344.00

Is this product suitable for my appliance?


DAR3000

More product information

Drop-down frame for full integration of DA 336x/brDA 34xx.


  • Option to fully integrate DA 336x / DA 34xx
  • The rangehood is not visible in the wall cabinet
  • Installing DA 3496 in cabinet (W: 60 cm) not possible w. DAR 3000

Downloads - DAR 3000

Installation drawings

Installation drawings

Whether you want to replace a household appliance or planning a kitchen - here you will find all the relevant installation diagrams for your Miele appliance.

If you want to download an installation diagram, please click on the appropriate image and the high-resolution version is displayed. To download, click the right mouse button and save the image on your computer.

Please note that the installation and maintenance of our equipment should only be performed by a licensed contractor. For questions, please call us and we will advise you without any obligation!

Descriptions

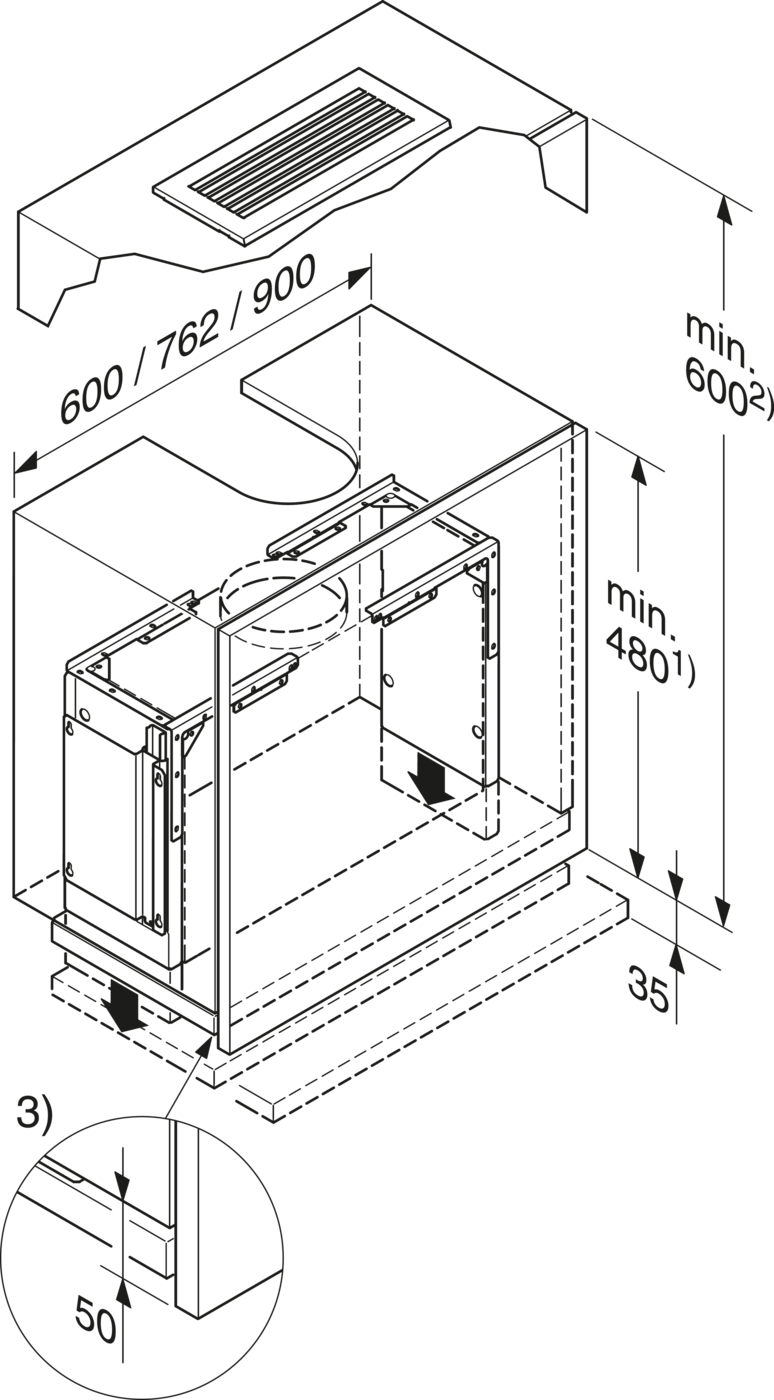

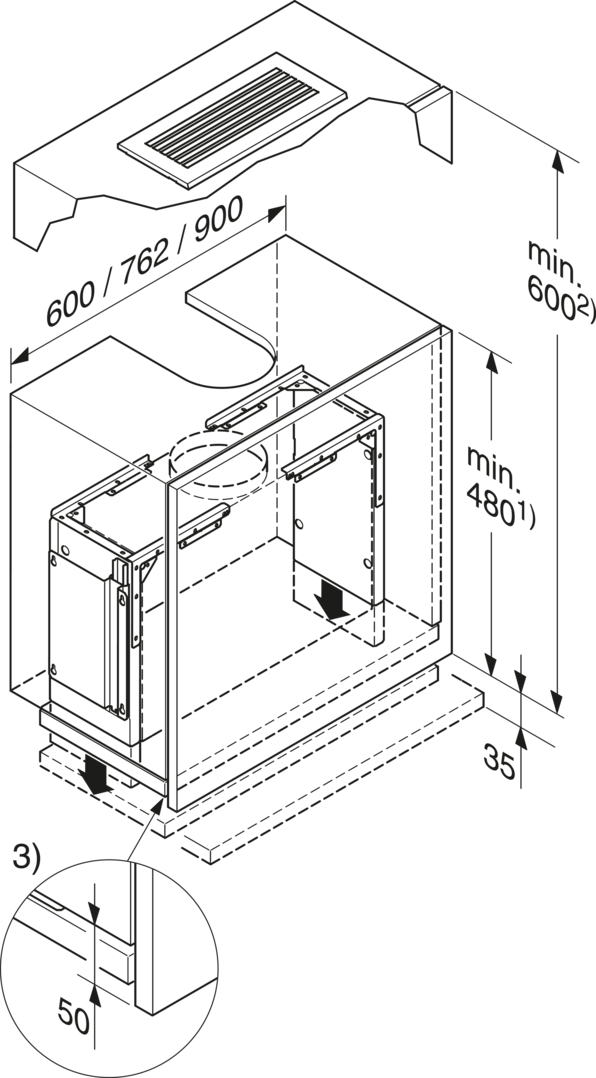

DAR 3000 (Installation drawing)

1. Vented, 2. Recirculation with conversion kit DUU 151, 3. Cabinet korpus has to be shorten 50 mm compared to the cabinet door., For all other cabinets, details in DA 3360, 3460, 2380 and 3490 dimensioned drawings apply. , A housing unit base is not required., Installing a DA 3490 in a 60 cm wide housing unit is not possible with the drop-down frame., Safe distance to cook top has to be kept by deepen cooker hoods

Images serve as examples to illustrate the product benefit. Actual feature may vary per model.
