DAE 1535
Extractor unit with EasySwitch controls for convenient operation

Price: $ 1,099.00
Article color:
  • Stainless steel
DAE1535

More product information

Extractor unit with EasySwitch controls for convenient operation


  • Customised kitchen design – fully integrated in 532 mm width
  • Powerful – 400 m3/h at the highest level
  • LED strip for uniform lighting
  • Efficient filtration – 10-layer stainless-steel grease filter

    Stainless steel grease filters (10-layer)

    Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.
  • Safe and easy to clean – Miele CleanCover

    Miele CleanCover

    Protection and easy cleaning: the sealed, smooth surface prevents contact with cables and the motor.

Downloads - DAE 1535

User manual & Assembly

Description Format Download
Assembly planpdf Download
Operating instructions accessoriespdf Download
Guarantee bookletpdf Download

CAD data / BIM data

Description Format Download
3D data DWGzip Download
3D data FBXzip Download
3D data IFCzip Download
3D data RFAzip Download
3D data RVTzip Download

Installation drawings

Installation drawings

Whether you want to replace a household appliance or planning a kitchen - here you will find all the relevant installation diagrams for your Miele appliance.

If you want to download an installation diagram, please click on the appropriate image and the high-resolution version is displayed. To download, click the right mouse button and save the image on your computer.

Please note that the installation and maintenance of our equipment should only be performed by a licensed contractor. For questions, please call us and we will advise you without any obligation!

Installation drawing
Descriptions

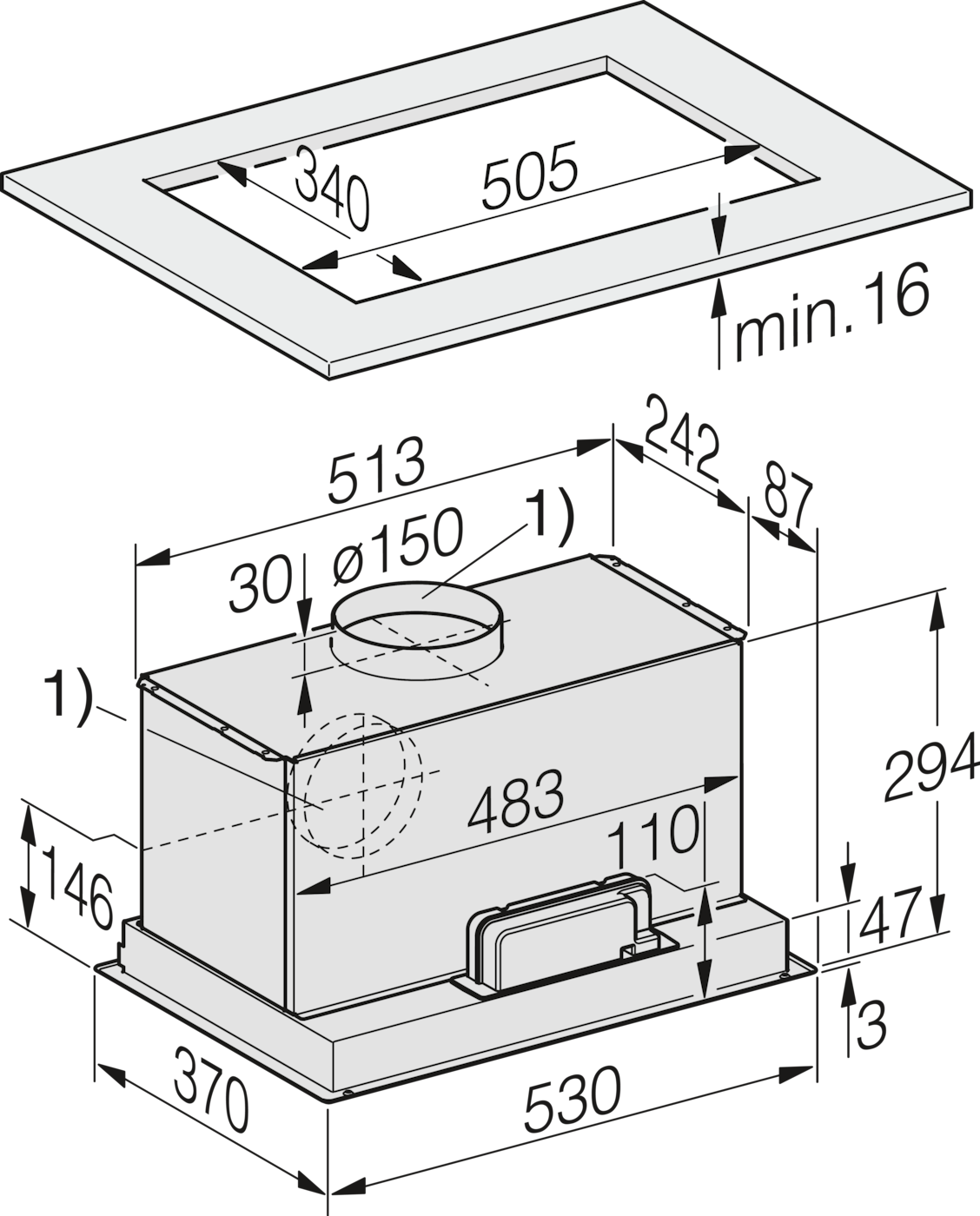

DAE1530, DAE1535 Installation drawing

1) Exhaust air connection alternatively to the rear., Exhaust air connection Ø 150 mm., Further detailed dimensions can be found in the operating instructions!
