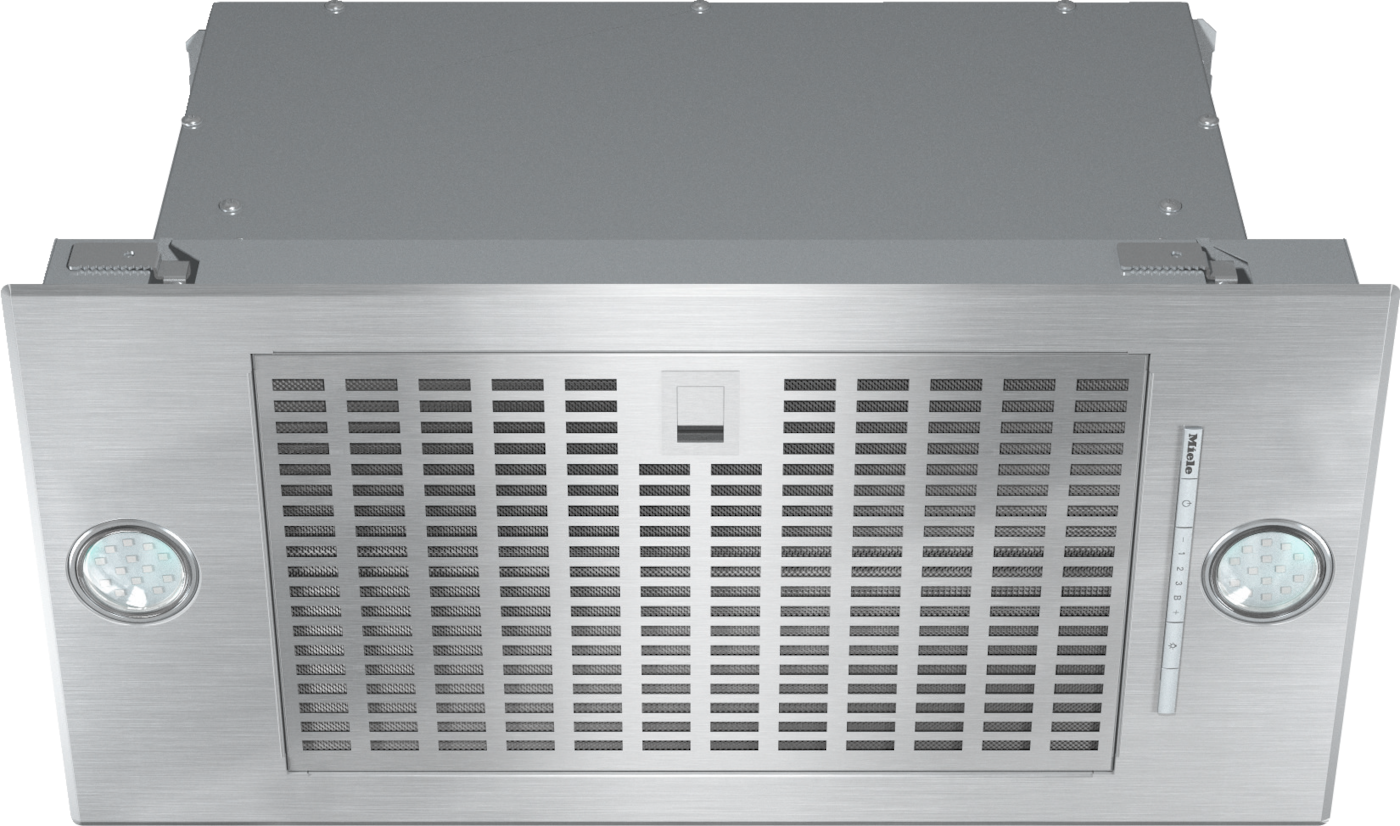

DA 2360Extractor unit with energy-efficient LED lighting and light-touch switches for easy use.

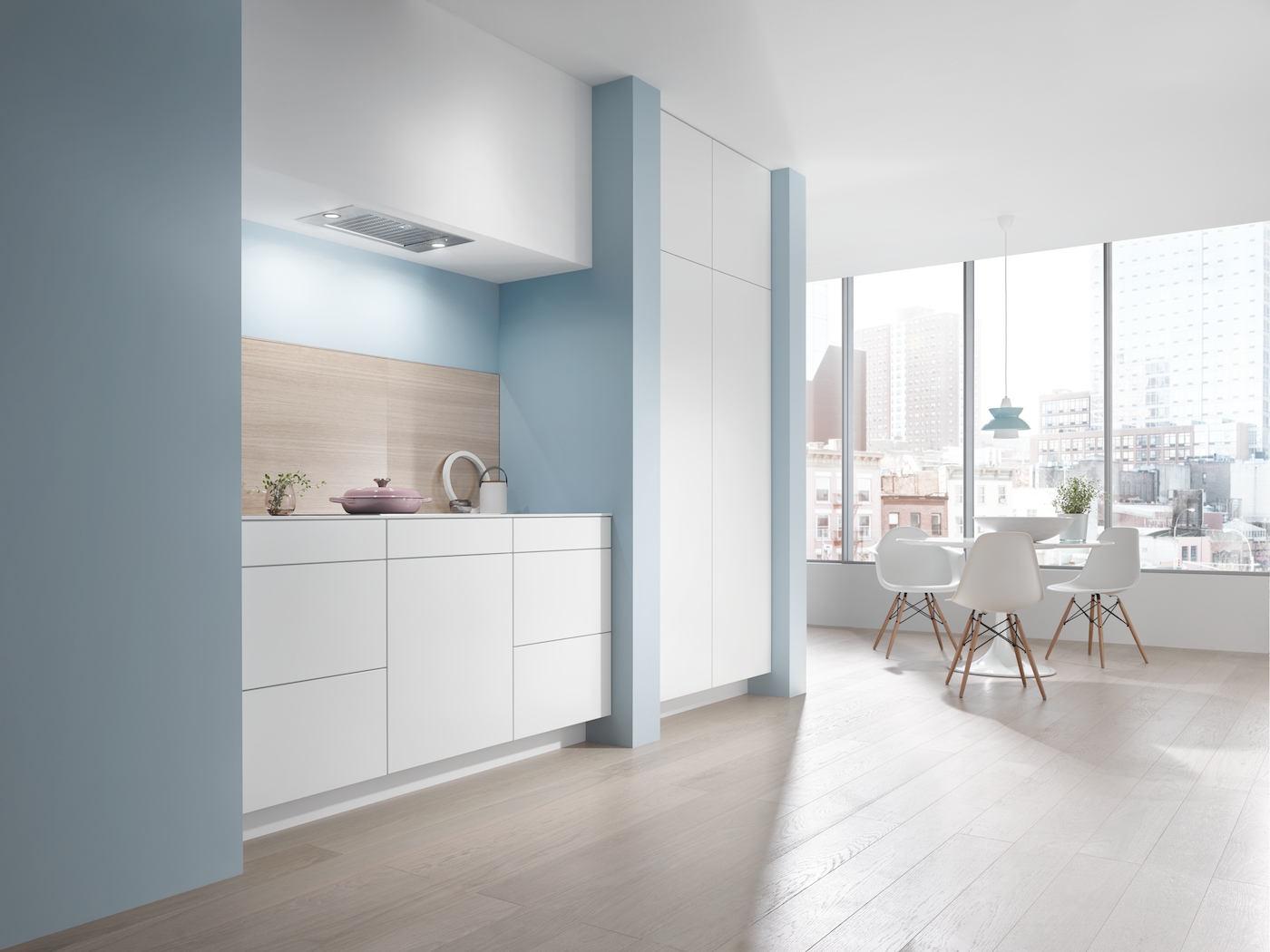

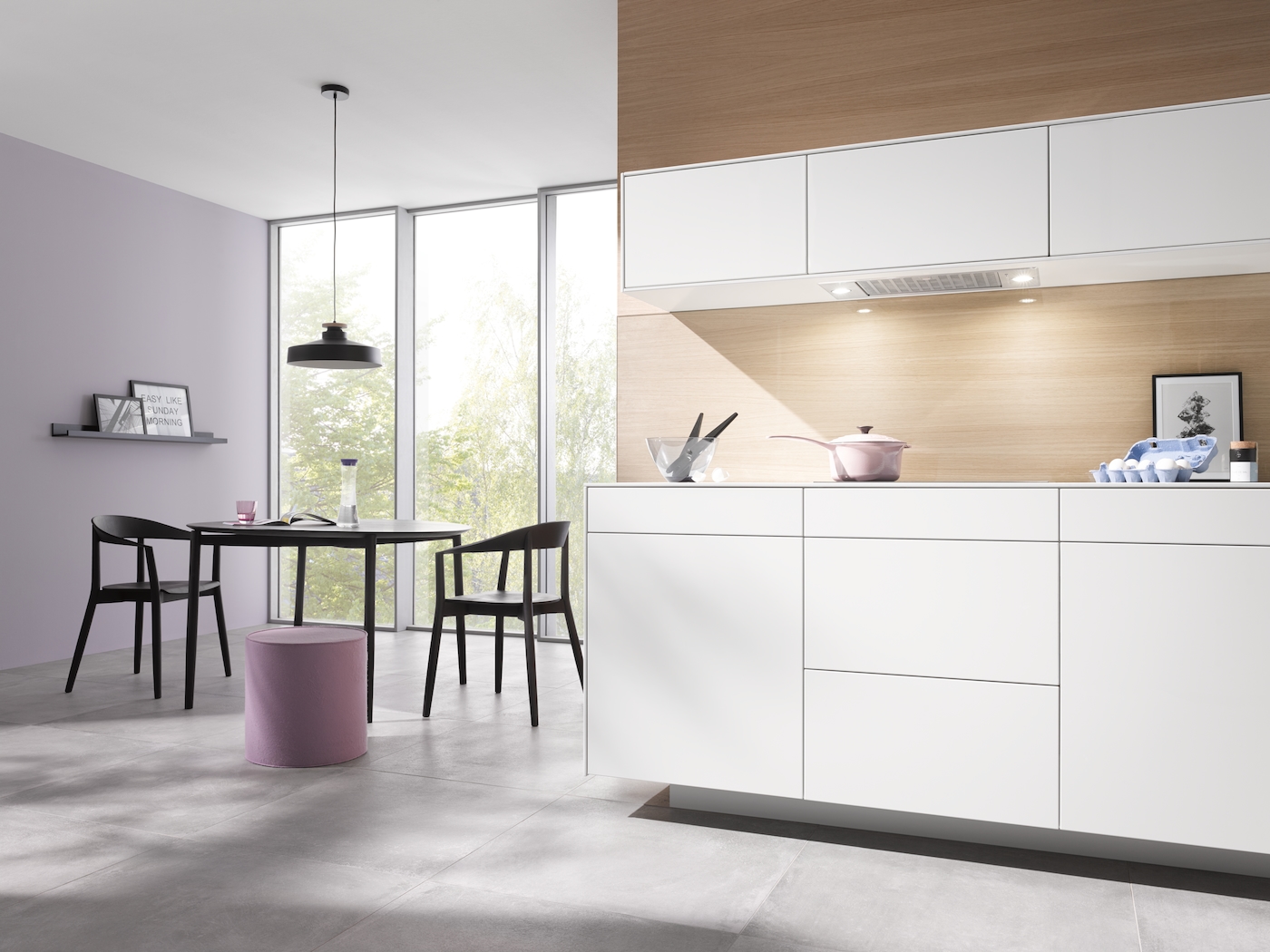

- Customised kitchen design – fully integrated in 584mm width
- Space-saving – suitable for narrow wall units over 30 cm deep
- Powerful – 600m3/h on the booster setting

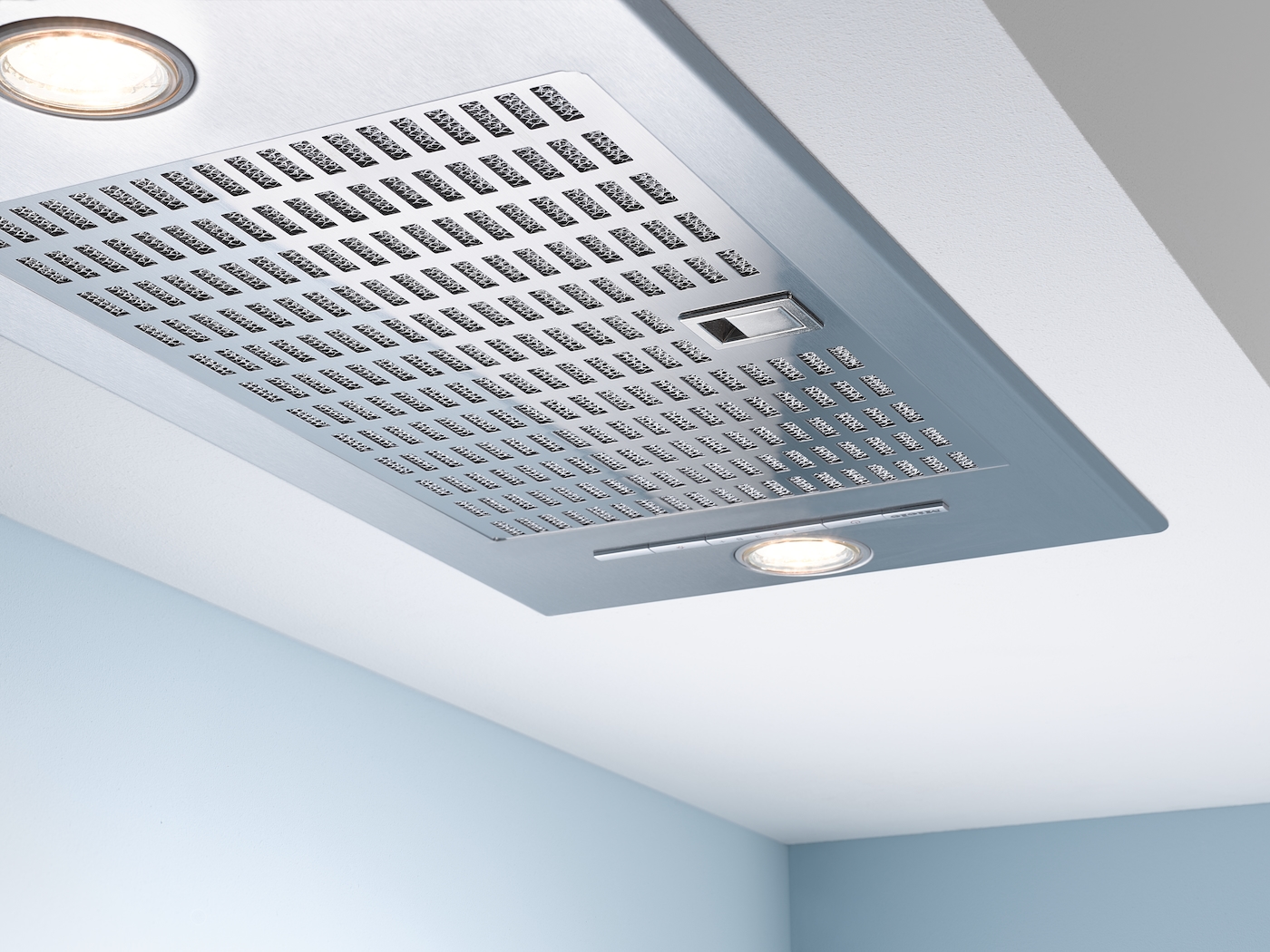

- Efficient filtration – 10-layer stainless-steel grease filter
Stainless steel grease filters (10-layer)
Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.Stainless steel grease filters (10-layer)
Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher. - Safe and easy to clean – Miele CleanCover
Miele CleanCover
Protection and easy cleaning: the smooth concealed surface prevents contact with electrical components and motor.
DA2360
Product details - DA 2360
| Construction type | |
|---|---|
| Integrated extractor | • |
| Design | |
| Colour | Stainless steel |
| Operating modes | |
| Type of air guide | Convertible |
| Recirculation conversion kit (order separately) | DUU 151 |
| User convenience | |
| Electronic controls | • |

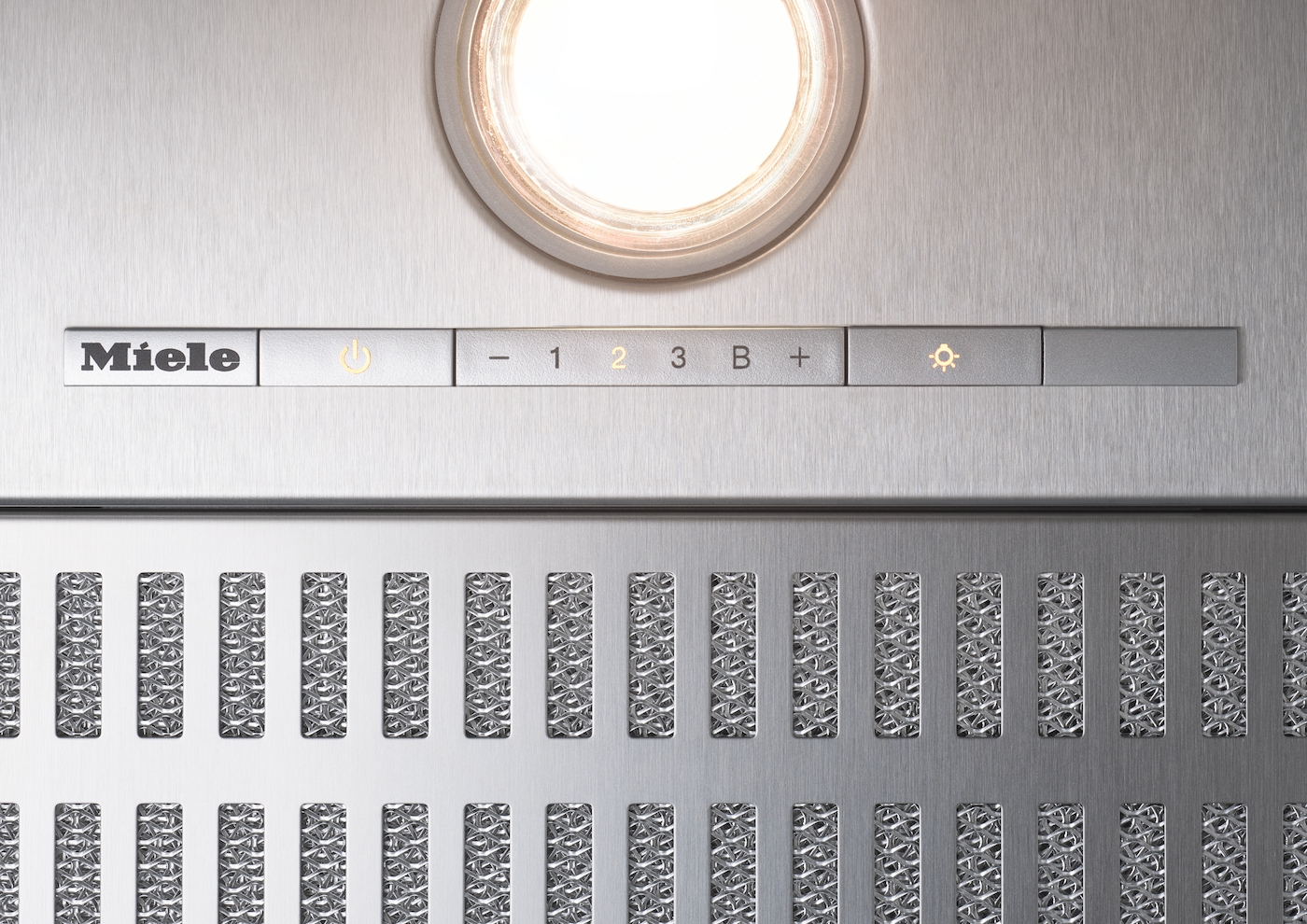

| Light-touch controls | • |
| Power levels (excluding booster levels) | 3 |
| Cleaning convenience | |
| Easy-to-clean canopy interior – CleanCover | • Miele CleanCoverProtection and easy cleaning: the smooth concealed surface prevents contact with electrical components and motor. |
| Filter system | |
Number of dishwasher safe stainless steel grease filtersStainless steel grease filters (10-layer)Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher. | 1 |
| Lighting | |
| LED | • |
| Light intensity in Lx | 350 |
| Colour temperature in K | 3,000 |
| Fan | |
| Dual-action fan | •  High-quality and powerful motorsPowerful and quiet: Radial fans on both sides ensure high air throughput and extraction with low noise levels. |
| AC motor | • |
| Air throughput with max. duct diameter in extraction mode (not for external version) | |
| Air throughput in Level 1 (m³/h) | 250 |
| Air throughput in Level 2 (m³/h) | 300 |
| Air throughput in Level 3 (m³/h) | 360 |
| Air throughput in booster level 1 (m³/h) | 600 |
| Sound power in Level 1 (dB(A) re 1 pW) | 47 |
| Sound power in Level 2 (dB(A) re 1 pW) | 48 |
| Sound power in Level 3 (dB(A) re 1 pW) | 52 |
| Sound power in booster level 1 (dB(A) re1pW) | 64 |
| Sound pressure in Level 1 (dB(A) re 20 µPa) | 31 |
| Sound pressure in Level 2 (dB(A) re 20 µPa) | 34 |
| Sound pressure in Level 3 (dB(A) re 20 µPa) | 38 |
| Sound pressure in booster level 1 (dB(A) re20µPa) | 50 50 |
| Sound pressure in booster level 2 (dB(A) re20µPa) | 50 50 |
| Air throughput in recirculation mode | |
| Air throughput in Level 1 (m³/h) | 190 |
| Air throughput in Level 2 (m³/h) | 250 |
| Air throughput in Level 3 (m³/h) | 320 |
| Air throughput in booster level 1 (m³/h) | 500 |
| Sound power in Level 1 (dB(A) re 1 pW) | 54 |
| Sound power in Level 2 (dB(A) re 1 pW) | 60 |
| Sound power in Level 3 (dB(A) re 1 pW) | 64 |
| Sound power in booster level 1 (dB(A) re1pW) | 72 72 |
| Sound power in booster level 2 (dB(A) re1pW) | 72 72 |
| Sound pressure in Level 1 (dB(A) re 20 µPa) | 39 |
| Sound pressure in Level 2 (dB(A) re 20 µPa) | 45 |
| Sound pressure in Level 3 (dB(A) re 20 µPa) | 49 |
| Sound power in booster level 1 (dB(A) re1pW) | 57 57 |
| Sound pressure in booster level 2 (dB(A) re20µPa) | 57 57 |
| Safety | |
| Safety switch-off | •  Safety switch-offSensible, even in case of operating errors: the rangehood will switch itself off automatically after 10 operating hours. |
| Technical data | |
| Canopy width in mm | 584 |
| Canopy height in mm | 63 |
| Canopy depth in mm | 297 |
| Net weight in kg | 11.0 |
| Length of supply lead in m | 1.5 |
| Standard plug fitted | • |
| Total rated load in kW | 0.23 |
| Voltage in V | 230 |
| Fuse rating in A | 10 |
| Number of phases | 1 |
| Installation notes | |
| Extraction ducting connection at top | • |
| Extraction connection at top and rear | • |
| Diameter of extraction ducting connection in mm | 150 |
| Standard accessories | |
| Non-return flap | •  Non-return flapThe non-return flap is supplied with the appliance and ensures that no hot or cold outside air can enter your kitchen via the rangehood. The component is installed directly on the exhaust connection above the fan for the rangehood and closes the opening between the kitchen and the ducting system leading outside. |
*GST inclusive
**GST inclusive
**GST inclusive
Subject to technical changes; no liability accepted for the accuracy of the information given!
