KM 2357-1 - Gas cooktop


KM 2357-1
Gas cooktop with electronic functions for maximum safety and user convenience.

Price: $ 4,299.00
KM2357-1

More product information

Gas cooktop with electronic functions for maximum safety and user convenience.


  • Optimal – single-handed operation via rotary dials and QuickStart

    QuickStart

    No need to press or hold the control: convenient rotary electronic controls switch the burners on.
  • Professional design – 892 mm wide stainless steel trough
  • Particularly versatile - 5 burners incl. 1 dual wok
  • Extremely safe – GasStop&Restart function
  • Easy cleaning – dishwasher-safe ComfortClean pot rests

Downloads - KM 2357-1

User manual & Assembly

Description Format Download
Operating instructions accessoriespdf Download
Guarantee bookletpdf Download

Installation drawings

Installation drawings

Whether you want to replace a household appliance or planning a kitchen - here you will find all the relevant installation diagrams for your Miele appliance.

If you want to download an installation diagram, please click on the appropriate image and the high-resolution version is displayed. To download, click the right mouse button and save the image on your computer.

Please note that the installation and maintenance of our equipment should only be performed by a licensed contractor. For questions, please call us and we will advise you without any obligation!

Descriptions

KM 2357 (Installation drawing) - Installation in solid wood or tiled worktops - VG AUS

1. Worktop, 2. Gas cooktop, 3. Gap, 4. Wooden frame (7 mm, to be provided on-site), , Building-in information:, Flush fit cooktops are only suitable for installation in granite, marble, or tiled worktops., For all other worktop materials, consult the worktop manufacturer whether it can be used with a flush-fit cooktop., As the appliance and the worktop cut-out have a certain dimensional tolerance, gap can vary.

Descriptions

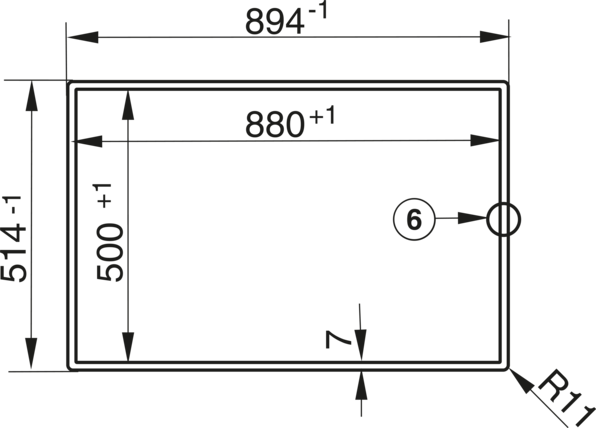

KM 2357 (Installation drawing) - Cut-out for granite or marble worktops - VG AUS

6. Stepped cut-out for granite or marble worktops, , Building-in information:, Flush fit cooktops are only suitable for installation in granite, marble, or tiled worktops., For all other worktop materials, consult the worktop manufacturer whether it can be used with a flush-fit cooktop., As the appliance and the worktop cut-out have a certain dimensional tolerance, gap can vary.

Descriptions

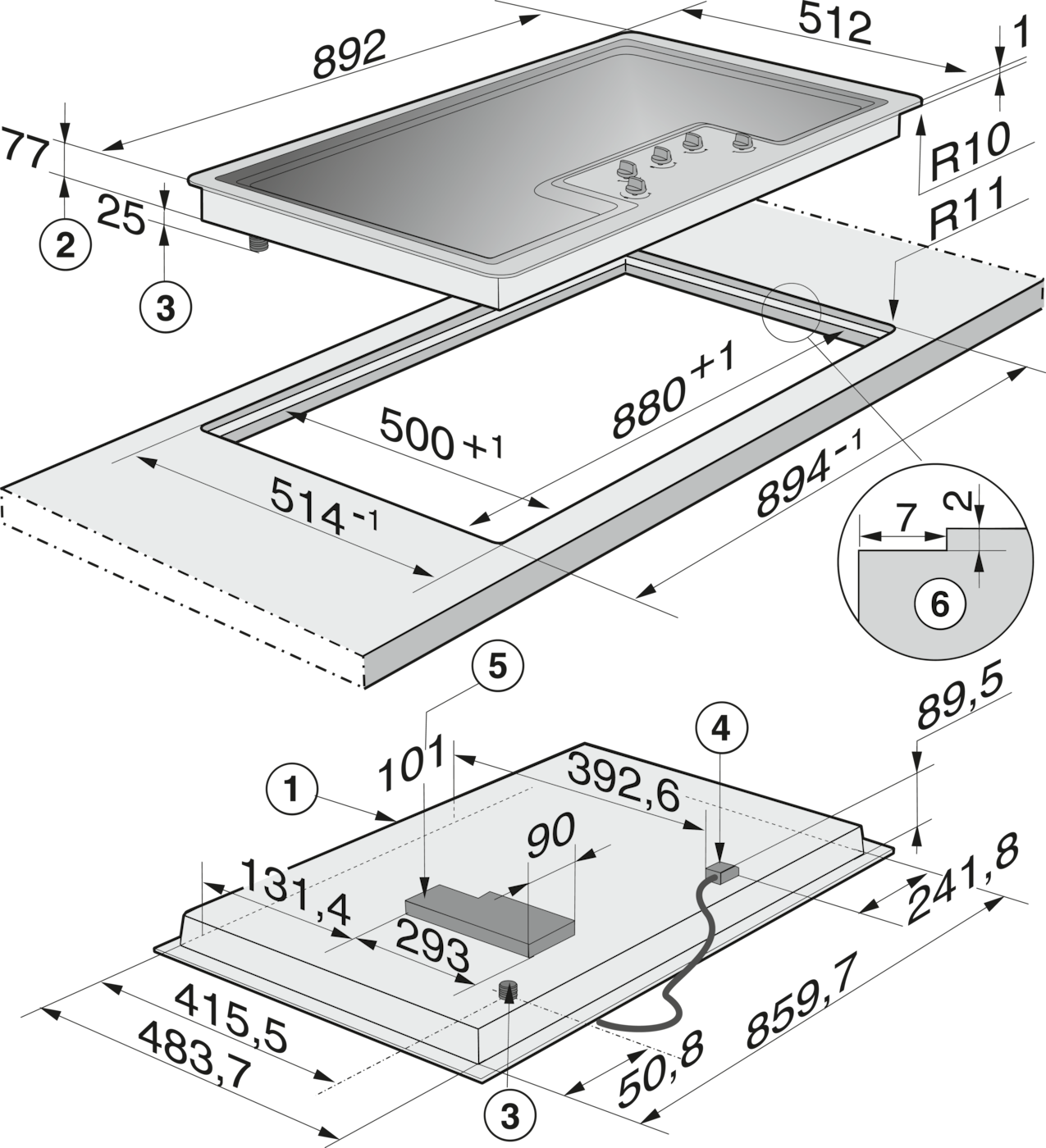

KM 2357 (Installation drawing) VG AUS

1. Front, 2. Building-in depth, 3. Gas connection R 1/2 - ISO 7-1 (DIN EN 10226), 4. Mains connection box with mains connection cable, L = 2,000 mm, 5. Electronics housing - max. building-in depth, including electronics housing, 101 mm, 5. Stepped cut-out for granite or marble worktops, , Building-in information:, Flush fit cooktops are only suitable for installation in granite, marble, or tiled worktops., For all other worktop materials, consult the worktop manufacturer whether it can be used with a flush-fit cooktop., As the appliance and the worktop cut-out have a certain dimensional tolerance, gap can vary.

Descriptions

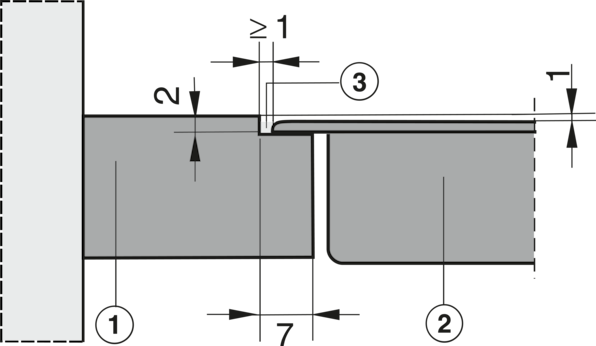

KM 2357 (Installation drawing) Installation in granite and marble worktops - VG AUS

1. Worktop, 2. Gas cooktop, 3. Gap, , Building-in information:, Flush fit cooktops are only suitable for installation in granite, marble, or tiled worktops., For all other worktop materials, consult the worktop manufacturer whether it can be used with a flush-fit cooktop., As the appliance and the worktop cut-out have a certain dimensional tolerance, gap can vary.

Images serve as examples to illustrate the product benefit. Actual feature may vary per model.
