KM 7220 FL
Induction cooktop with mains plug, operated with its own controls with 3 individual cooking zones at an attractive entry-level price

Price: $ 1,999.00
KM7220 FL

More product information

Induction cooktop with mains plug, operated with its own controls with 3 individual cooking zones at an attractive entry-level price


  • With mains plug for particularly easy connection
  • Quick selection via numerical keybank – ComfortSelect
  • 3 individual cooking zones in various sizes
  • A width of 620 mm for surface-mounted or flush-fit installation

Downloads - KM 7220 FL

User manual & Assembly

Description Format Download
Operating instructions accessoriespdf Download
Guarantee bookletpdf Download

CAD data / BIM data

Description Format Download
3D data DWGzip Download
3D data FBXzip Download
3D data IFCzip Download
3D data RFAzip Download
3D data RVTzip Download

Installation drawings

Installation drawings

Whether you want to replace a household appliance or planning a kitchen - here you will find all the relevant installation diagrams for your Miele appliance.

If you want to download an installation diagram, please click on the appropriate image and the high-resolution version is displayed. To download, click the right mouse button and save the image on your computer.

Please note that the installation and maintenance of our equipment should only be performed by a licensed contractor. For questions, please call us and we will advise you without any obligation!

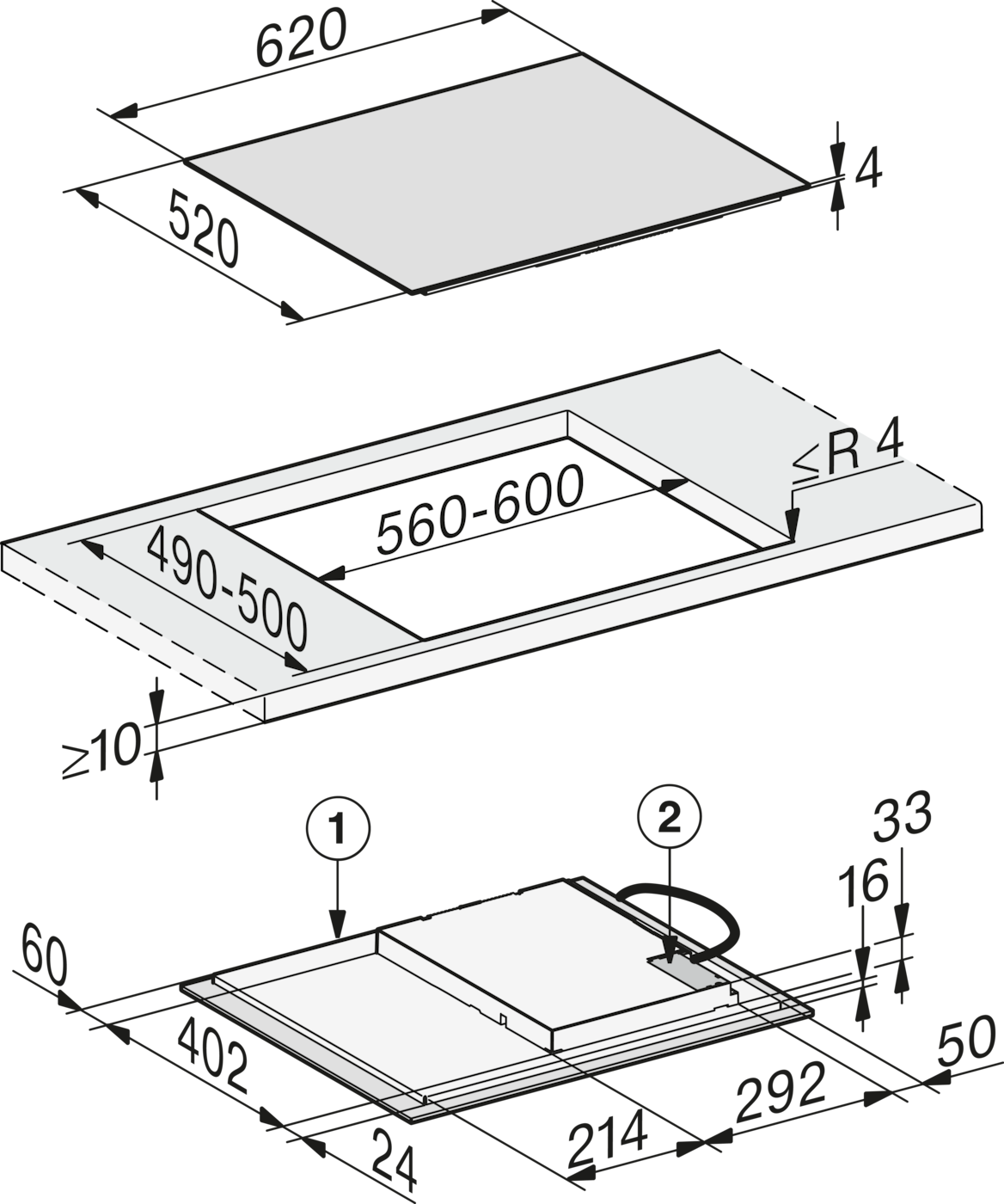

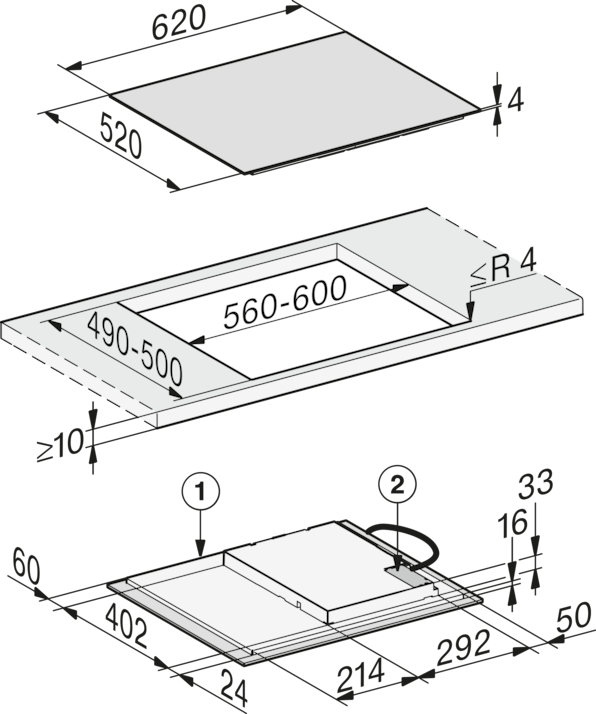

Installation drawing
Descriptions

1) front, 2) Mains connection box with mains connection cable, mains connection cable L = 2000 mm

KM7220FL surface-mounted - AU (Installation drawing)

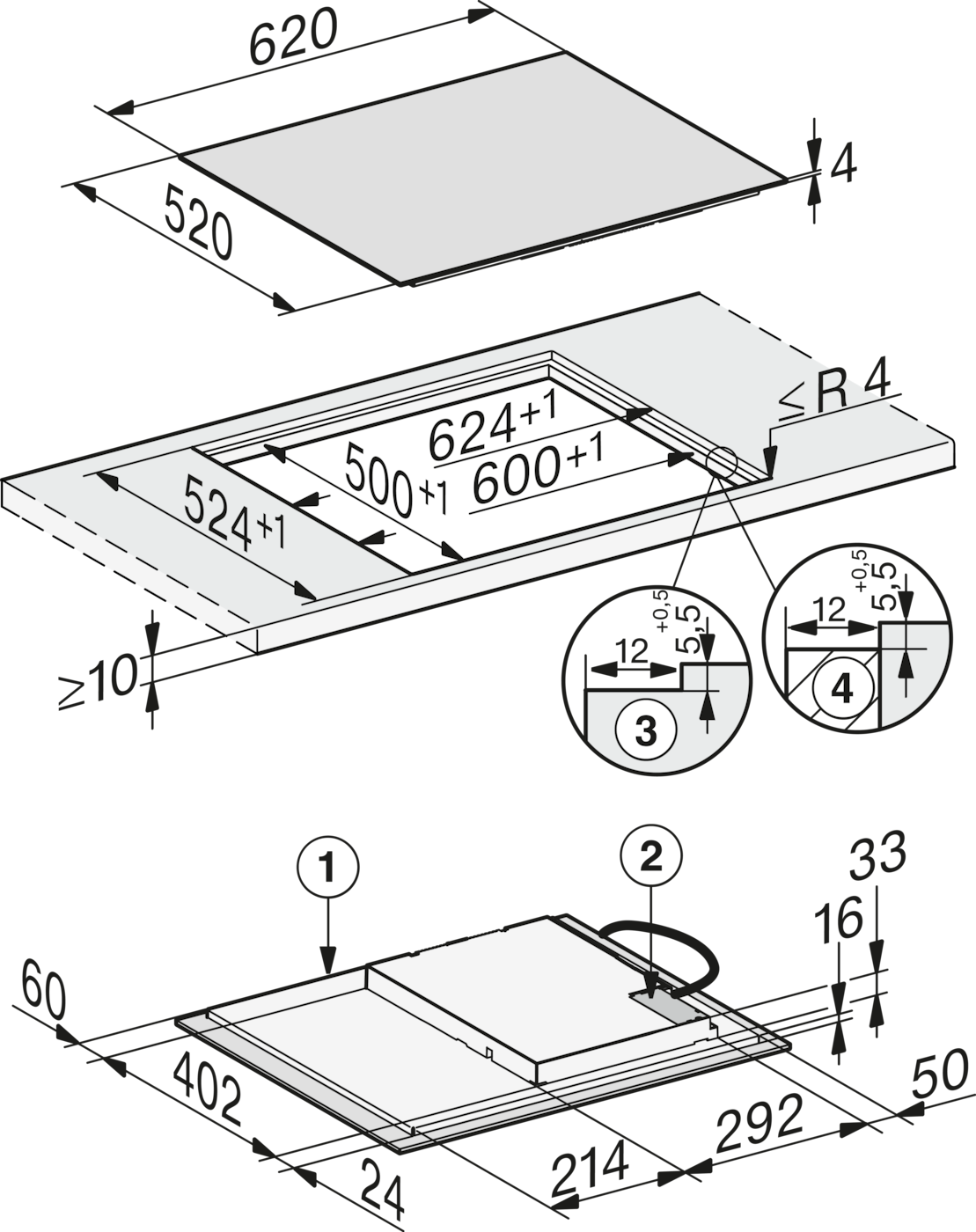

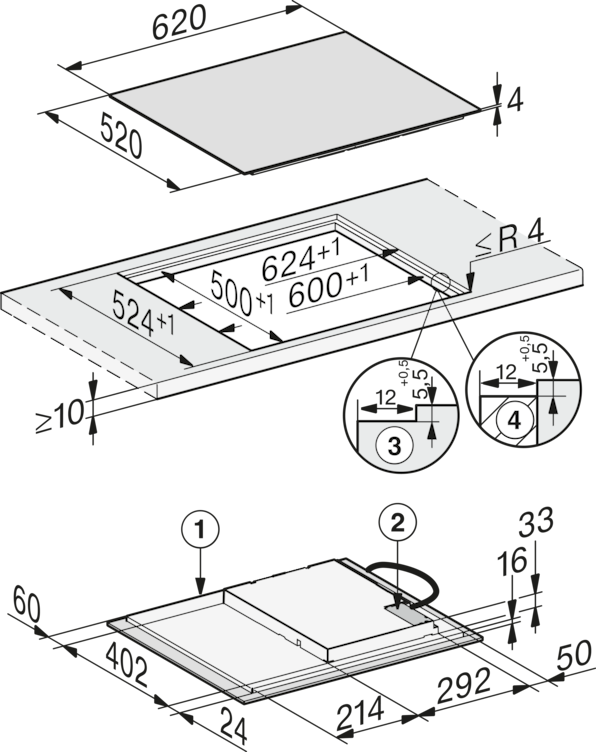

Installation drawing
Descriptions

1) front, 2) mains connection box with mains connection cable, mains connection cable L = 2000 mm, 3) Step milling natural stone countertop, 4) Wooden strip 12 mm (not supplied accessories)

KM7220FL flush - AU (Installation drawing)

Images serve as examples to illustrate the product benefit. Actual feature may vary per model.
